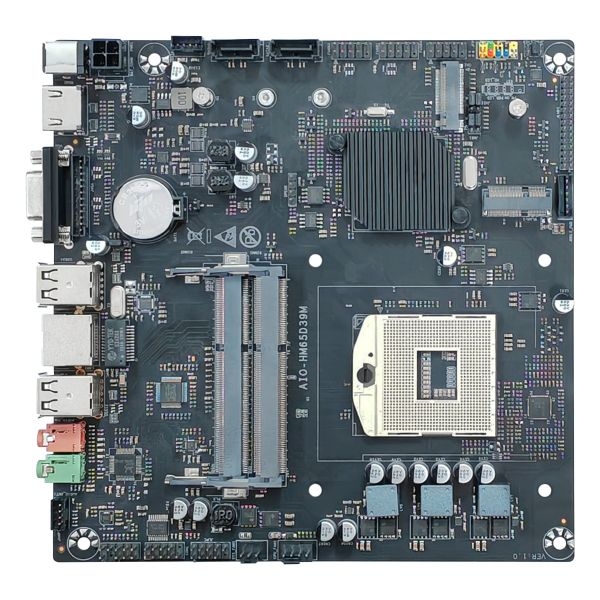

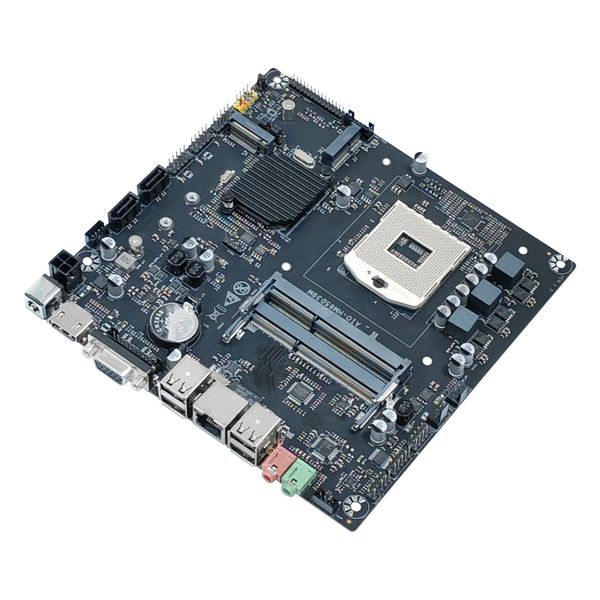

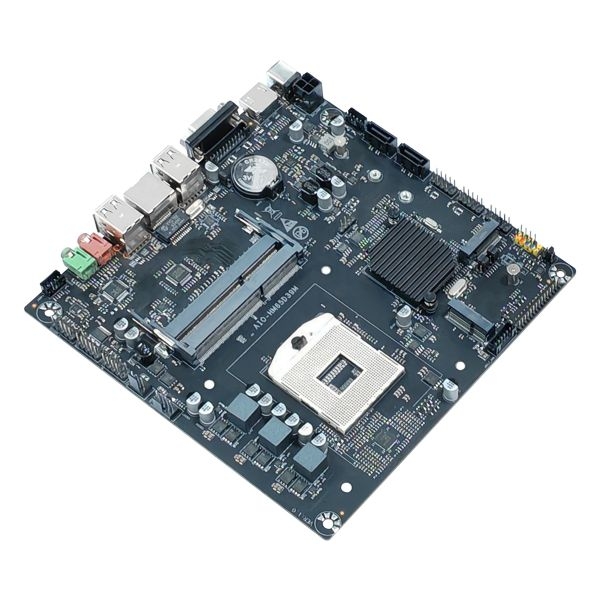

Motherboard chip |
IntelCougar Point |
|
CPU |
Intel 2nd/3rd generation Core I3, I5, I7 CPU, TDP：35W |
|
|
Optional: I3-2310M, I3-2350M, I5-3210M, I5-3230M. |
|
memory |
2*DDR3L SO-DIMM, 1600MHz/16G, single slot supports up to 8G. |
|
Cunzhu |
1*M.2 slot (supports pin skipping to switch NGFF/NVME); Through JMS1/JMS2 pin setting 2*SATA(1*SATA 3.0/1*SATA 2.0) interface+1*SATA power interface. |
|

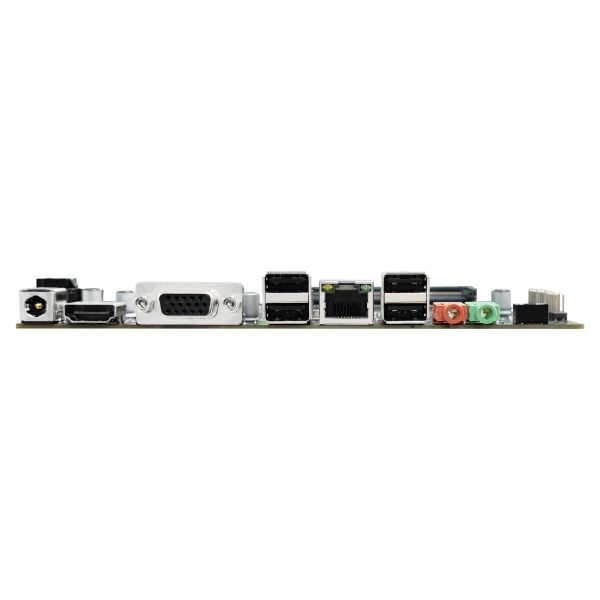

Display interface |
1*HDMI 1.4A interface, 1*VGA interface (VGA or JVGA), 1*LVDS interface. |
|
network |
1*RJ45 interface |
|
Network card chip |
Realtek RTL8111H Gigabit NIC Chip |
|
WIFI |
1*M.2 WIFI slot |
|
audio frequency |
1*Line out； 1*MIC In； 1*F_Audio built-in pin; 1*JAMP built-in power amplifier pin |
|
Audio chip |
Realtek ALC897 HD Audio Chip |
|
serial port |
1*9Pin serial port pin |
|
|
Serial port only supports RS232 mode. |
|
Usb interface |
IO interface: 4 USB2.0；; Built-in pins: 3 sets of USB2.0 pins (6 USB2.0 ports can be expanded) |
|
LVDS function |
1*LVDS 30Pin, 2*3Pin screen voltage jump cap (3.3V/5V/12V) |
|
|
LVDS supports replication/extended display. |
|
LVDS backlight function |
1*6Pin JBKLT_PWR interface |
|
Functional pin |
1*FPANEL panel pin; 1*4Pin CPU fan; 1*3Pin SYS fan |
|
Power input |
1*DC socket; 1*4Pin ATX power socket (DC12V~19V power input) |
|
product size |
Thin Mini-ITX motherboard specification, 170 x 170 mm x 4L |
|
Working temperature |
-10℃~60℃ |
|
Working humidity requirements |
10%~90% without condensation |
|
Storage temperature |
-25℃~70℃ |
|
power consumption |
Standby power consumption: 18W Full load power consumption: 75.6W |
|
other |
1 JCMOS jump cap; 1*4Pin SPEAK (buzzer) |
