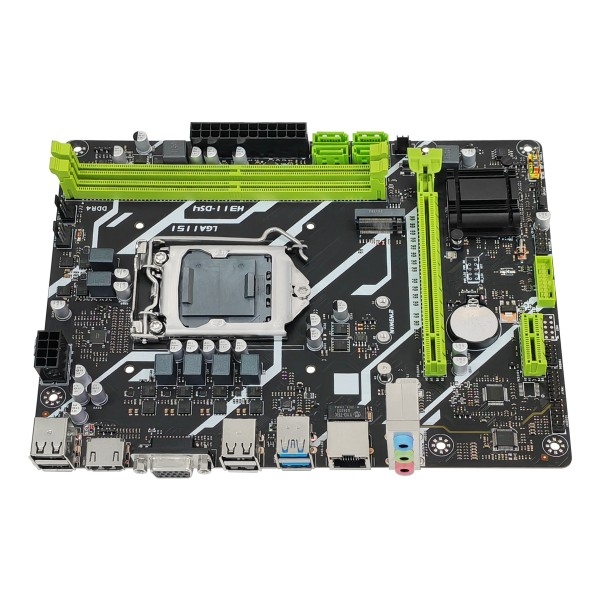

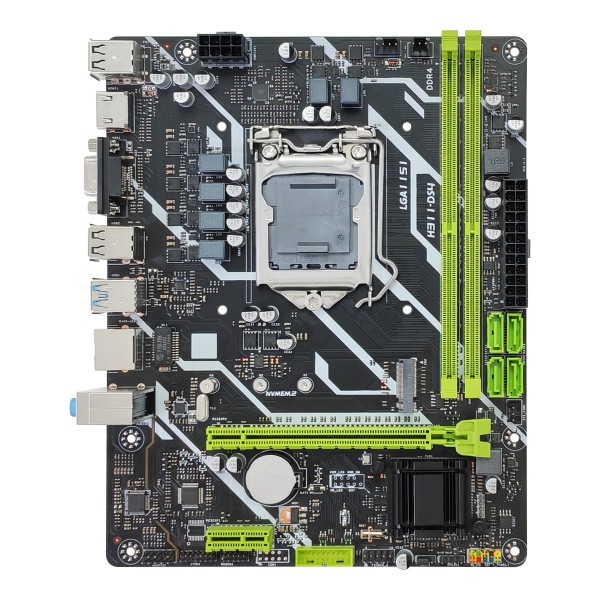

Motherboard chip |
Intel H110 |
|
CPU |
Support LGA1151 slot-9th/8th/7th/6th generation processors: Intel Core i7/i5/i3 processors; Intel® Pentium® processor/Intel® Celeron® processor, etc. |
|
|
Optional: i3-7100, g5420, i7-9700, i5-9400f, etc. |
|
memory |
Dual-channel memory architecture; 2*288Pin-DDR4 DIMM slot, supporting the maximum memory of 32GB；; Support DDR4 2666/2400/2133MHz. (Actual memory frequency support depends on processor type and memory stick) |
|
TPM |
1*TPM2.0 pin (14-1Pin) |
|
Display interface |
1*HDMI1.4 ； 1*VGA (supporting synchronous dual display) |
|
save |
Intel H110 Chipset: 1* M.2 slot (NVME protocol); Support 2280/2260/2242 storage devices (PCIe2.0 x4 mode is supported). 4*SATA 3.0 interface |
|
network |
1*RJ45 network interface (Realtek 1Gbps network card chip) |
|
PCIE slot |
1*PCIEXP2 slot (Intel processor 1x PCIe3.0 x16 slot); 1*PCIEXP1 slot (Intel H110 chipset 1x PCIe2.0 x1 slot) |
|
audio frequency |
1*Line out； 1*MIC In； 1*Line In； 1*JAudio1 front audio connector (Realtek 7.1 HD audio chip) |
|
Usb interface |
Rear panel: 2 * USB 3.0; 4*USB2.0； Front panel: 1 set of FUSB20_2 connectors (2 USB2.0 ports can be extended); 1 set of FUSB30_1 connector (2 USB3.0 ports can be extended); |
|
Functional pin |
1*F_PANEL1 panel pin; 1*4Pin CPU_FAN1； 1*3Pin SYS_FAN1; 1*3Pin SYS_FAN2 |
|
Power input |
24Pin+8Pin ATX power socket |
|

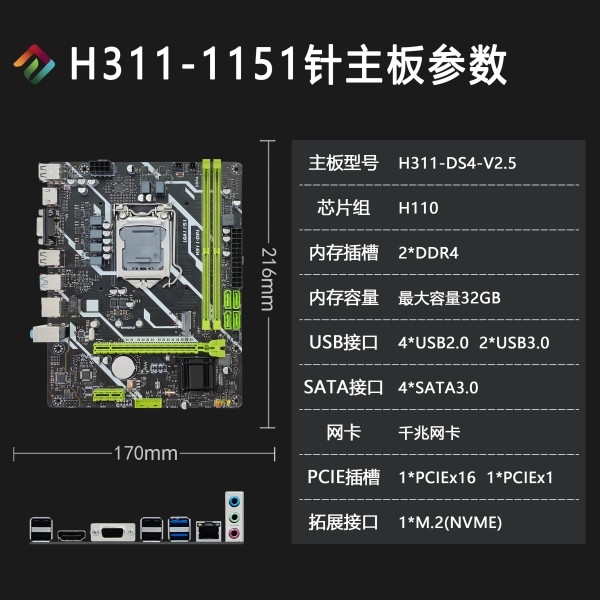

product size |
M-ATX motherboard specification, 170 x 216 mm x 4L |
|
Working temperature |
-10℃~60℃ |
|
Working humidity requirements |
10%~90% without condensation |
|
Storage temperature |
-25℃~70℃ |
|
power consumption |
Standby power consumption: 50~70W Full load power consumption: 180~260W (for reference only) (If you want to install hardware equipment with high power consumption, please use a high-power power supply.) |
|
other |
1*JBAT needle connection; 1*DEBUG pin; 1*SPEAK pin (buzzer) |
