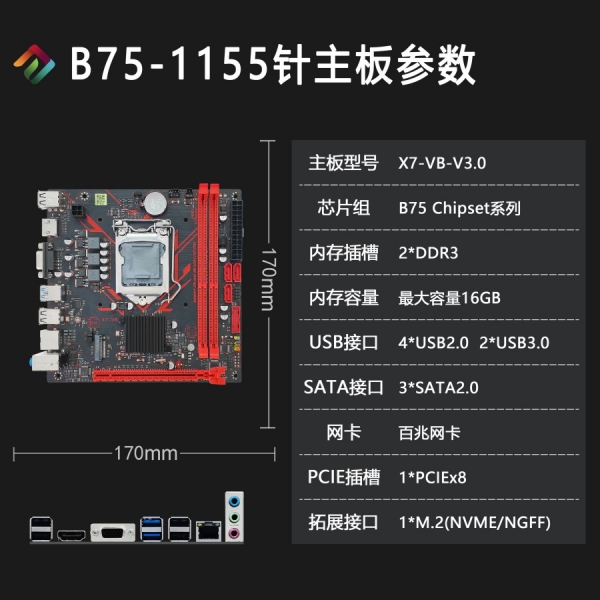

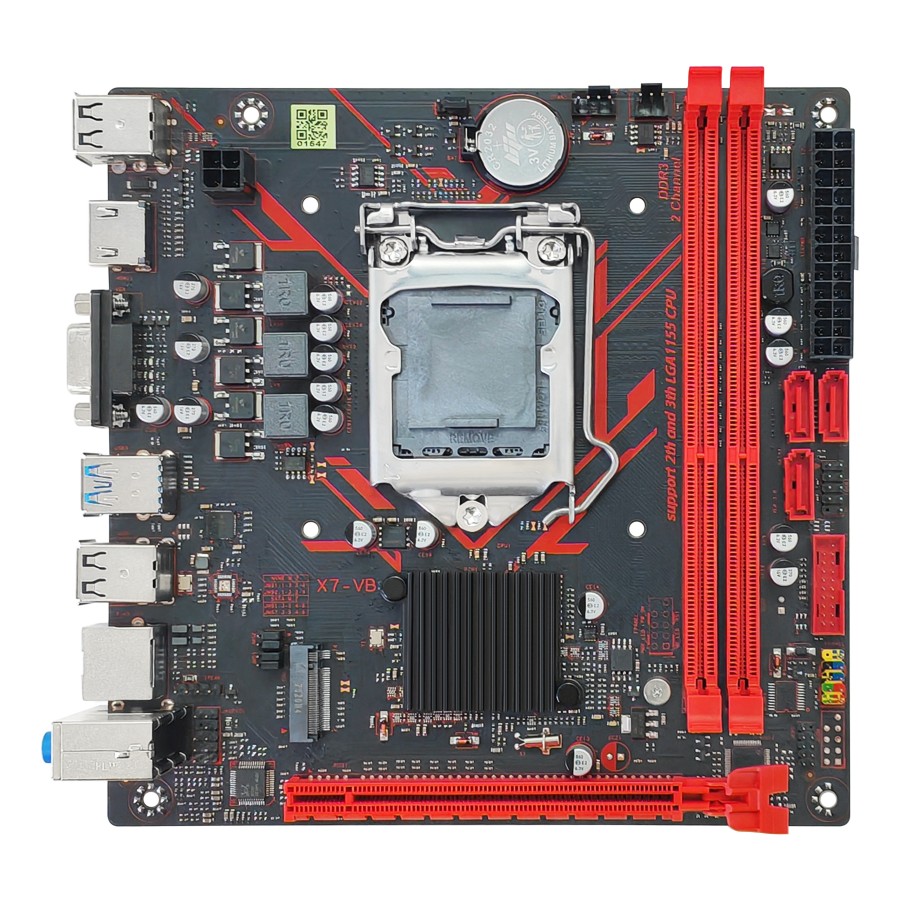

Motherboard chip |
Intel B75 chipset |
|
CPU |
Support LGA1155 slot-2nd/3rd generation processors: Intel Core i3/i5/i7 processors; Intel® Pentium® processor/Intel® Celeron® processor/Intel® Xeon E3 processor; |
|
memory |
Dual-channel memory architecture; 2*240-Pin DDR3 DIMM slot, which supports the maximum memory of 16G (8G * 2); Support DDR3 1600/1333/1066MHz. (Actual memory frequency support depends on processor type and memory stick) |
|
save |
1* M.2 slot (NVME&SATA protocol); 3* SATA 2.0 interface |
|
Video interface |
1*HDMI+1* VGA (supporting synchronous dual display) |
|
Network function |
1*(RJ45+LED) interface (Realtek 100M network card chip) |
|
PCIE expansion slot |
1*PCIE1 slot (1x PCIe x8 slot); |
|
audio frequency |
1*Line out； 1*MIC In； 1*Line In； 1*JAudio front audio connector (Realtek HD audio chip) |
|
Usb interface |
Rear panel: 4 * USB 2.0; 2*USB3.0 Front panel: 1 set of FUSB1 pins (2 USB2.0 ports can be extended); 1 set of FUSB3 connector (2 USB3.0 ports can be expanded); |
|
Functional pin |
1*FPANEL panel pin; 1*4Pin CFAN； 1*3Pin SFAN； 1*SPEAK pin |
|
Power input |
24Pin+4Pin ATX power socket |
|
product size |
ITX motherboard specification, 170 x 170 mm x 4L |
|
Working temperature |
-10℃~60℃ |
|
Working humidity requirements |
10%~90% without condensation |
|
Storage temperature |
-25℃~70℃ |
|
power consumption |
Standby power consumption: 30~35W Full load power consumption: 105W~125W (for reference only) (If you want to install hardware equipment with high power consumption, please use a high-power power supply.) |
|
other |
1*JLPC needle connection; 1*JBAT zero clearing needle; 2 sets of M.2 mode switching pins (JMS1/JMS2) |
