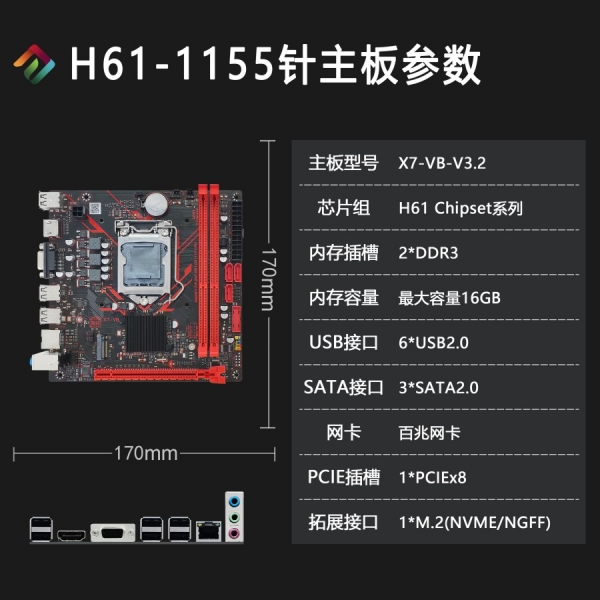

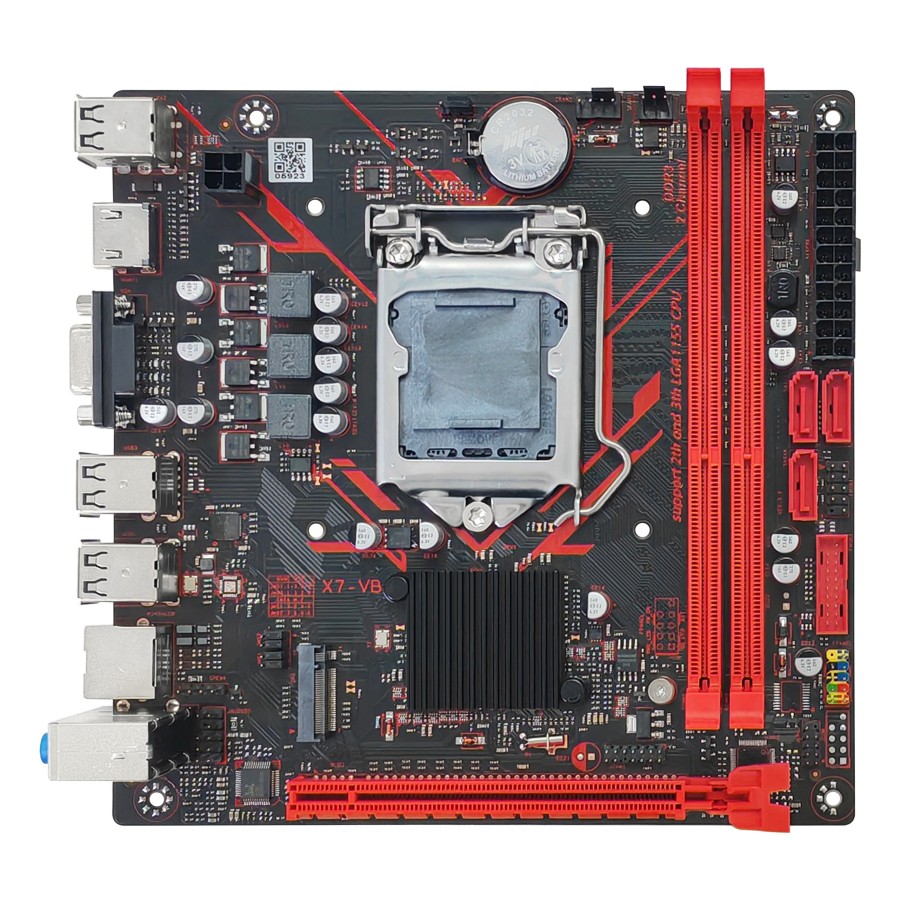

Motherboard chip |
Intel H61 |
|
CPU |
InteI LGA 1155-pin Intel second and third generation, Xeon E series CPU |
|
|
Optional: G1620/I5-2400/I7-3770 and so on. |
|
memory |
2*DDR3 DIMM, 1600MHz/16G, single slot supports up to 8G. |
|
Cunzhu |
1* M.2 slot (NVME/SATA protocol, need to switch the cap); 3*SATA2.0 interface |
|
Display interface |
1*HDMI interface, 1*VGA interface |
|
network |
1*RJ45 interface |
|
Network card chip |
Realtek 100 MB network card chip |
|
PCIE slot |
1*PCIE X8 slot |
|
audio frequency |
1*Line out； 1*Mic In； 1*Line In； 1*F_Audio built-in pin |
|
Audio chip |
Realtek HD audio chip |
|
serial port |
/ |
|
PS/2 interface |
/ |
|
Usb interface |
Rear USB interface: 6*USB2.0 Front USB pin: 1 set of USB2.0 pins; 1 set of USB3.0 pins (4 USB2.0 can be expanded) |
|
Functional pin |
1*FPANEL panel pin; 1*4Pin buzzer pin; 1*4Pin CPU fan; 1*3Pin SYS fan |
|
Power input |
24Pin+4Pin ATX power socket |
|
product size |
170 x 170mm x 4L； ITX motherboard |
|
Working temperature |
-10℃~60℃ |
|
Working humidity requirements |
10%~90% without condensation |
|
Storage temperature |
-25℃~70℃ |
|
power consumption |
Standby power consumption: 20~50W Full load power consumption: 80~120W (for reference only, excluding discrete graphics power consumption) |
|
other |
2*5Pin diagnostic card interface; 1*JBAT jumping cap; 1*JTPM pin |
