Motherboard chip |
Intel Q57 |
|
CPU |
Intel Xeon E5 LGA2011-3 processor |
|
|
Optional: E5266v3, E5 2673 V3, E5 2678V3, E5 2696V3, etc. |
|
memory |
4*DDR3 DIMM, dual channel (red slot is the main slot and black slot is the auxiliary slot), 1066/1333/1600/1866MHZ, and single slot can support 32G at most. |
|
Cunzhu |
1* M.2 slot (NVME/NGFF jumper switch, left NVME mode, right NGFF mode); 4*SATA 2.0 interface |
|
network |
1*RJ45 interface |
|
Network card chip |
Realtek RTL8111H Gigabit NIC Chip |
|
PCIE slot |
1*PCIE X16 slot, 1*PCIE X1 slot |
|
audio frequency |
1*Line out； 1*MIC In； 1*Line In； 1*F_Audio built-in pin |
|
Audio chip |
USB sound card CJC6811A |
|
PS/2 |
1*PS/2 interface |
|
Usb interface |
IO interface: 6*USB2.0 interface. Built-in pins: 2 sets of USB2.0 pins (4 USB2.0 ports can be expanded) |
|
Functional pin |
1*FPANEL panel pin; 1*4Pin buzzer pin; 1*4Pin CPU fan; 1*3Pin SYS fan |
|
Power input |
24Pin+8Pin ATX power socket |
|
product size |

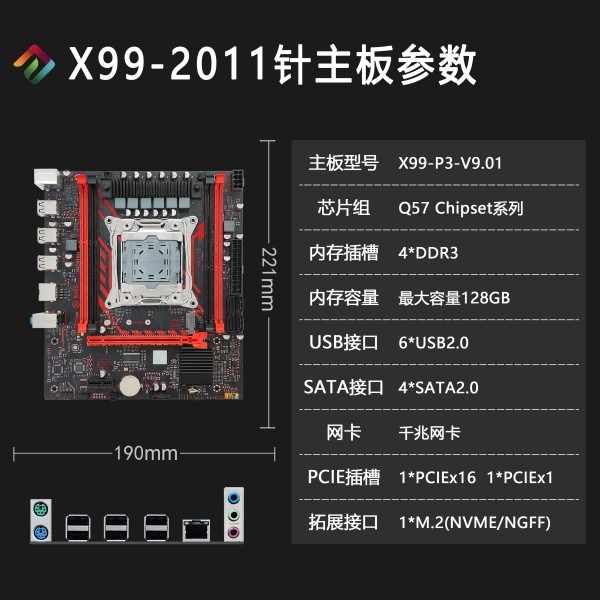

M -ATX motherboard specification, 190 x 220.57 mm x 4L |
|
Working temperature |
-10℃~60℃ |
|
Working humidity requirements |
10%~90% without condensation |
|
Storage temperature |
-25℃~70℃ |
|
power consumption |
Standby power consumption: 50~70W Full load power consumption: 180~300W |
|
other |
1*BAT； 2*5Pin diagnostic card interface |
