Motherboard chip

Intel C612

CPU

InteI LGA 2011-3 pin series CPU

Optional: E52673v3/E52676v3/E52666v3/E52678v3/E52696v3/E52686v4/E52696v4 and so on.

memory

4*DDR3 DIMM, 1866MHz/128G, maximum support of 128G (dual channel, black slot as the main channel).

Cunzhu

1* M.2 slot (PCI-E 3.0x4 high-speed NVME and SATA 3.0, need to switch the cap); 8*SATA3.0 6Gb/s interface

Display interface

PCIE X16 slot is connected to the display card.

network

1*RJ45 interface

Network card chip

Realtek gigabit network card chip

PCIE slot

2*PCIE 3.0 X16 slot; 3*PCIE2.0 X1 slot

audio frequency

3.5MM interface, 7.1 audio

Audio chip

Realtek HD audio chip

serial port

/

PS/2 interface

1*PS2 keyboard mouse interface

Usb interface

Rear interface: 4*USB2.0/4*USB3.0

Built-in pins: 1 set of USB2.0 pins /1 set of USB3.0 pins (2 USB2.0 ports and 2 USB3.0 ports can be expanded).

Functional pin

1*FPANEL panel pin; 1*4Pin buzzer pin; 1*4Pin CPU fan; 1*4Pin SYS fan; 1*3Pin SYS fan;

Power input

24Pin+8Pin ATX power socket

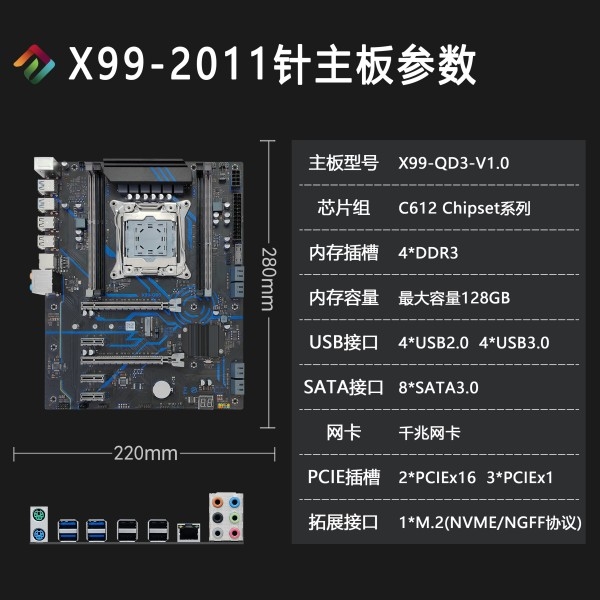

product size

220 x 280 mm x 4L

Working temperature

-10℃~60℃

Working humidity requirements

10%~90% without condensation

Storage temperature

-25℃~70℃

power consumption

Standby power consumption: 40~80W Full load power consumption: 220~320W (for reference only)

other

1*JBAT jumping cap; 2*5Pin diagnostic card interface; 1*14Pin TPM interface
